BOSCH REXROTH
3842546122
$755.21 USD
- BOSCH REXROTH
- Material:3842546122
- Model:BASE UNIT 120+ AL DIRECT
Quantity in stock: 0
The Bosch Rexroth BASE UNIT 120+ AL DIRECT (3842546122) is a versatile and efficient base unit designed for conveyor systems, featuring a direct drive kit that allows for the quick transformation into a head drive with variable mounting positions. This product is engineered to reduce noise emissions through the use of slide rails guided in the head drive, enhancing the operational environment. The unit can be installed on either side with options for right or left motor, coupling, and flange configurations. The integrated double-sided hexagonal hollow shaft enables the drive of a parallel conveyor section or bridge, facilitating synchronous operations and allowing for easy connection to other components. The BASE UNIT 120+ AL DIRECT supports all track widths and chain types, with a maximum permissible chain tensile force and adjustable section lengths to accommodate various applications. It has been designed for non-reversible operation and includes a chain bag to compensate for elongation over its service life. Constructed from die-cast aluminum with a powder-coated silver finish, this base unit ensures durability and resistance to corrosion. The chain wheel and guide are made of PA material while the ball bearings are crafted from non-rusting steel with FDA-compliant grease filling, ensuring high standards of hygiene for industries requiring such compliance. The hexagonal shaft is made from PA up to a certain size, beyond which non-rusting steel is used. Furthermore, the side elements come equipped with slots for attaching holders for lateral guides or similar accessories. For inclined sections, it is recommended to use a chain sprocket to prevent backslipping of the chain. The scope of delivery includes fastening materials with assembled chain guards enclosed. While active or passive bridge connection kits and synchronous drive connection kits serve as recommended accessories, additional components such as drive kits and motor support are required to complete installation and functionality. Overall, the Bosch Rexroth BASE UNIT 120+ AL DIRECT stands out as an innovative conveyor component offering flexibility in application while maintaining high performance in material handling tasks.

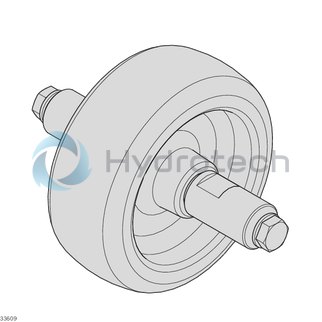

Base unit AL, VFplus 120 dir.
Unpacked Weight: 4.07 kg
The base unit is quickly turned into a head drive with variable mounting position by adding a drive kit.
With the double-sided hexagonal hollow shaft, other components can be easily driven using a transmission (active bridge).
Size: all track widths Suitable chain types: all Permissible chain tensile force: Fmax = 1250 N Section length: L ≤ 30 m Conveying speed: vN 4-27 m/min, other speeds available on request Chain bag to compensate for chain elongation during service life Not suitable for reversible operationChain sprocket
Innovative drive concept
Conveyor noise level
| Base unit AL direct + drive kit = a complete head drive |
| Reduced noise emission due to slide rails guided in the head drive |
| Installation of the drive kit possible on the right/left (motor, coupling, flange) |
| Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard |
| Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling |
| Implementation of parallel sections with gap dimension down to zero |
| Side elements with slot to attach holders for lateral guides, or similar |
| A chain sprocket must be used to limit the chain slipping back on inclined sections. |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Effective sliding rail length | 0,881 |
| Actual chain length | 2x 0,2 |
| Weight | 4.07 |
| Scope of delivery | Incl. fastening material |
| Delivery information | Assembled: chain guards enclosed |
| Recommended accessories | Active or passive bridge connection kits,Synchronous drive connection kit |
| Required accessories | Drive kit,Slide rail: Length calculation,Motor support |
| Size [b] | 120 |
| Material information | Housing: Diecast aluminum, powder-coated, silver,Chain wheel: PA,Chain guide: PA,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA |
Combination matrix
|
Straight |
Curves |
Drives |
Return Unit |
||||||||||||
|
Section profile AL open |
Section profile AL closed |
Assembly module |
Curve wheel |
Roller curve* |
Horizontal sliding curve |
Vertical curve |
Head drive |
Curve wheel drive |
Connection drive |
Center drive (STS)** |
Basic unit |
90° (STS)** |
Transmission kit |
||
|
Straight |
Section profile AL open |
J |
|||||||||||||
|
Section profile AL closed |
J |
J |
|||||||||||||
|
Assembly module |
J |
J |
N |
||||||||||||
|
Curves |
Curve wheel |
J |
J |
L2) |
L2) |
||||||||||
|
Roller curve* |
J |
N |
J |
N |
L1) |
||||||||||
|
Horizontal sliding curve |
J |
J |
J |
J |
N |
L1) |
|||||||||
|
Vertical curve |
J |
J |
J |
J |
L1) |
L1) |
L1) |
||||||||
|
Drives |
Head drive |
J |
J |
L2) |
L2) |
L1, 4) |
L1) |
L1, 4) |
N |
||||||
|
Curve wheel drive |
J |
J |
L2) |
L2) |
N |
L1) |
L1) |
N |
N |
||||||
|
Connection drive |
J |
J |
L2) |
L2) |
N |
L1) |
L1) |
N |
N |
N |
|||||
|
Center drive (STS)** |
L5) |
L5) |
L2, 5) |
L2, 5) |
N |
L1, 5) |
L1, 5) |
N |
N |
N |
N |
||||
|
Return Unit |
Basic unit |
J |
J |
L2) |
L2) |
L1, 4) |
L1) |
L1, 4) |
L2) |
N |
N |
L2, 3) |
L2, 3) |
||
|
90° (STS)** |
L5) |
L5) |
L2, 5) |
L2, 5) |
N |
L1, 5) |
L1, 5) |
N |
N |
L2, 5) |
N |
N |
L2) |
||
|
Transmission kit |
N |
N |
N |
N |
N |
N |
N |
J |
N |
J |
N |
J |
N |
N |
|
|
J |
possible without restrictions |
* Support profile must project 76+2 mm into the roller curve. |
|||||||||||||
|
L |
possible with restrictions |
** AL-STS adapter included in the scope of delivery. |
|||||||||||||
|
N |
not possible |
||||||||||||||
| 1) | Profile connector not required |
| 2) | Use of a profile piece (Lmin = 120 mm) |
| 3) | Assembly module required |
| 4) | For sizes 160-320: shorten the support rail on the dotted line |
| 5) | Use of the AL-STS adapter |
Head drive AL GM = 0
Head drive AL GM = 2

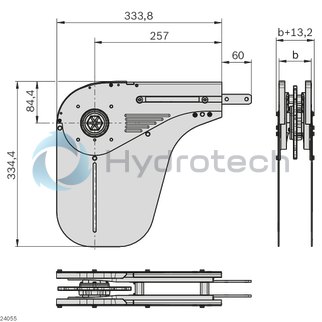

Base unit AL
Note: High-pressure cleaning of the ball bearings is not permitted.
Note: A chain sprocket must be used to limit the chain slipping back on inclined sections.
Slide rail
Slide rail
Easy assembly - simply clip onto the section profile Secured against axial shifting due to lateral boltingCAD data
Drive kit
Drive kit
The adjustable ball catch coupling is protected and integrated in the flange to save spaceCAD data
Connection kit active bridge, connection kit passive bridge
Connection kit active bridge, connection kit passive bridge
Simple transmission of the drive force using hexagonal hollow shafts integrated into the base unit or return unit as standard Can be retrofitted into a standard configuration at any time Active and passive bridges can be used at section ends for product transferCAD data
Connection kit synchronous drive
external motor/internal motor
Connection kit synchronous drive
external motor/internal motor
CAD data
