BOSCH REXROTH
HINGE
3842543329
$19.17
- BOSCH REXROTH
- Material:3842543329
- Model:HINGE AL 40/40 LIFTOFF, R
Quantity in stock: 2

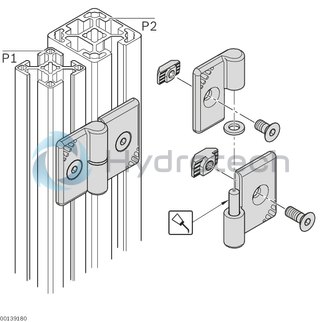

Hinge, LIFTOFF right P1=40 P2=40
Unpacked Weight: 0.074 kg
| Compact, removable hinge for doors which open to the right or left |
| Version designLINE with special silver paint (RAL 9006) for an especially high-quality design: Version designLINE with special silver paint (RAL 9006) for an especially high-quality design |
| Centering lugs as an assembly aid and anti-torsion element |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| designLINE | yes |
| Packaging unit | 2 |
| ESD | yes |
| Force [Fmax] | 300 |
| Profile [P2] | 40 |
| Hinge type | detachable |
| Material | Diecast aluminum |
| Dimension [B] | 37 |
| Weight | 0.074 |
| Scope of delivery | Incl. fastening material |
| Dimension [A] | 37 |
| Material information | Hinge: Diecast aluminum, painted,Fastening material: Steel, galvanized,Grooved pin: Steel, galvanized,Washer: PA |
| Profile [P1] | 40 |
| Fastening material | 2x countersunk screw DIN7991-M6X16,2x T-nut groove 10 M6,1x washer DIN125-A6.4 |
| Profile slot | 10 |
| Profile slot | 10 |
|
No. |
Material |
| 3842543334 |
Hinge: diecast aluminum, painted Fastening material: steel; galvanized Grooved pin: steel; galvanized Washer: PA |
| 3842543333 | |
| 3842543332 | |
| 3842543331 | |
| 3842543330 | |
| 3842543329 | |
| 3842543328 | |
| 3842543327 | |
| 3842543326 | |
| 3842543325 | |
| 3842543324 | |
| 3842543323 | |
| 3842543322 | |
| 3842543321 |
LIFTOFF hinge
|
FS1 |
FS2 |
FS3 |
LS4 |
|
|
|
|
