BOSCH REXROTH
3842541226
$29.21
- BOSCH REXROTH
- Material:3842541226
- Model:CASTER WHEEL D80 F
Quantity in stock: 6
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CASTER WHEEL D80 F (3842541226) is a high-quality wheel designed for versatile applications, ensuring smooth and controlled mobility. This particular model features a lock (LR with lock) that can prevent both rolling and turning, providing stability when needed. The wheel is crafted from thermoplastic rubber, making it gentle on floors and suitable for use in ESD-sensitive areas due to its conductive material that complies with DIN EN standards, ensuring conduction resistance. With an 80mm diameter and excellent running properties, this caster wheel is ideal for a range of uses. It can be mounted either in the profile slot or the central hole of the equipment, although additional accessories are required for installation. For assembly in the central hole, profile finishing involves thread cutting M8. The total height and dimension h details are specified to ensure compatibility with various setups. The product comes with a packaging unit specification and is designed to handle a certain force (F). The weight of the caster wheel is also provided to inform users of its heftiness. For secure fastening to the profile core, a screw M8x30 ISO 10642 at 9.8 Nm is required along with a bearing ring if a cover cap with hole usage is intended. Additionally, fastening materials include square screws M8x14 and hexagon nuts DIN M8. Overall, this Bosch Rexroth CASTER WHEEL D80 F offers reliable performance for mobile platforms or equipment that require both ease of movement and the option to lock wheels in place when stationary stability is needed.
The Bosch Rexroth CASTER WHEEL D80 F (3842541226) is a high-quality wheel designed for versatile applications, ensuring smooth and controlled mobility. This particular model features a lock (LR with lock) that can prevent both rolling and turning, providing stability when needed. The wheel is crafted from thermoplastic rubber, making it gentle on floors and suitable for use in ESD-sensitive areas due to its conductive material that complies with DIN EN standards, ensuring conduction resistance. With an 80mm diameter and excellent running properties, this caster wheel is ideal for a range of uses. It can be mounted either in the profile slot or the central hole of the equipment, although additional accessories are required for installation. For assembly in the central hole, profile finishing involves thread cutting M8. The total height and dimension h details are specified to ensure compatibility with various setups. The product comes with a packaging unit specification and is designed to handle a certain force (F). The weight of the caster wheel is also provided to inform users of its heftiness. For secure fastening to the profile core, a screw M8x30 ISO 10642 at 9.8 Nm is required along with a bearing ring if a cover cap with hole usage is intended. Additionally, fastening materials include square screws M8x14 and hexagon nuts DIN M8. Overall, this Bosch Rexroth CASTER WHEEL D80 F offers reliable performance for mobile platforms or equipment that require both ease of movement and the option to lock wheels in place when stationary stability is needed.

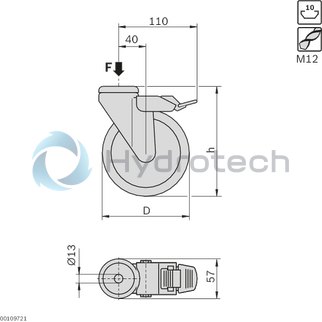

| LR with lock: lock prevents the wheel from rolling or turning |
| Especially gentle on floors |
| Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 106 Ω: Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 106 Ω |
| Versatile range of uses |
| Wheels with excellent running properties |

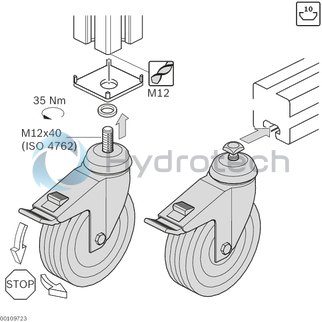

| Mounting of the roller in the profile slot or central hole (accessories required) |
| Profile finishing: thread cutting M12 in the case of assembly in central hole |
| LR with lock: lock prevents the wheel from rolling or turning |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Packaging unit | 1 |

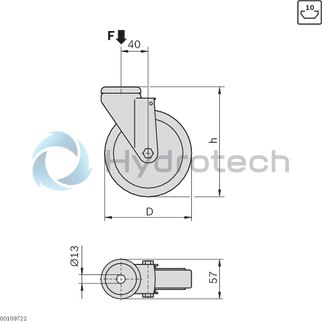

| Force F | 900 |
| Diameter D | 80 |
| Total height | 108 |
| Material | Thermoplastic rubber |
| Dimension [h] | 108 |
| Weight | 0.614 |
| Required accessories | Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm),Bearing ring if cover cap with hole is used |
| Fastening material | 1x square screw M12x30,1x hexagon nut DIN985 M12 |
| Profile slot | 10 |
