BOSCH REXROTH
CONNECTOR
3842541178
$7.13
- BOSCH REXROTH
- Material:3842541178
- Model:CONNECTOR 0
Quantity in stock: 25
| Corner bracket D28 |
| D28 bushing |
| 0°-90° connector |
| 0°-90° D28 connector |

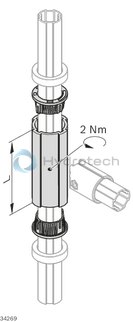

| D28L swivel bearing |
| Corner bracket D28 |
| Corner bracket D28 for easy adjustment within a 15° range |
| Swivel range: 90°-270° |
| Swivel bearing D28L |
| For axial shifting along the D28L or D28L, N10 round tube; the retaining ring defines the end position |
| Construction of swiveling applications |
| Additional thread for flexible bracket adjustment |
| For self-assembly: D28L swivel bearing with L = 1000 mm that can be cut to length D28 bushing D28L retaining ring: For self-assembly: D28L swivel bearing with L = 1000 mm that can be cut to length D28 bushing D28L retaining ring |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Packaging unit | 20 |
| ESD | yes |
| Material | Diecast zinc |
| Weight | 0.32 |
| Scope of delivery | Incl. fastening material |
| Fastening material | 2x cylinder head screw ISO4762 M6x25,2x hexagon nut DIN985 M6 ISO4042 |

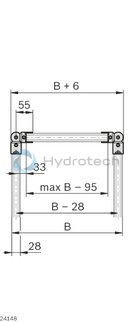

Length calculation
Length calculation
Cross tie D28L – permissible point load in the center
connector: 90° connector, cross connector, corner piece
Cross tie D28L – permissible section load
connector: 90° connector, cross connector, corner piece
F = 300 N, swivel bearing D28L, holding ring D28L
Connector
Static load limit values of the connection (beginning of plastic deformation)
|
No. |
3842541178 | 3842543480 | 3842548123 | 3842548121 | 3842548122 | 3842557298 | 3842557299 | ||
|
Material |
Diecast zinc |
Aluminum D28 bushing: POM; black |
Aluminum | POM; black | |||||
