Material:3842540120
Model:HAND SWITCH LIFT MODULE

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HAND SWITCH (3842540120) is a sophisticated control device designed to operate lifting modules for stepless workstation height adjustments. This hand switch is an integral component of a system that provides ergonomic solutions for varying workplace requirements. It features a push button for height adjustment and includes four memory buttons that allow users to store and recall different positions with ease, ensuring a customizable and efficient work environment. The lifting module A associated with this hand switch is capable of delivering a maximum lifting force of 2500N, suitable exclusively for compressive forces, with a lift range of 400mm and a velocity of 25mm/s. The control unit B ensures the synchronous operation of up to four lifting modules in parallel, optimizing the lift system's functionality. Additionally, the HAND SWITCH comes with various accessories to enhance its performance. The contact bridge D allows operation of the controller without collision protection, while the mains cable E (not shown) facilitates connection to power sources. For safety measures, the pressure wave control strip F and pressure wave sensor G offer mechanical collision protection by sending signals to halt or reverse the movement if slight pressure is detected on the control strip, which can be custom-cut and has a self-adhesive backing for easy installation. With a cable length of 1.8 meters attached to the hand switch C, users are provided with sufficient reach for convenient operation. The Bosch Rexroth HAND SWITCH (3842540120) represents an essential tool for creating adaptable workstations that prioritize user comfort and safety through precise height adjustability and reliable collision prevention mechanisms.

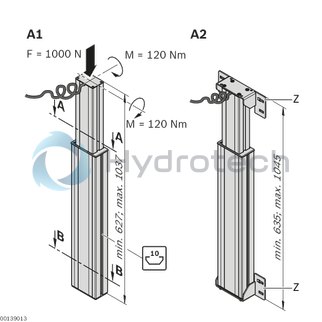

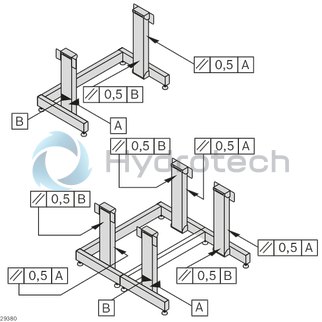

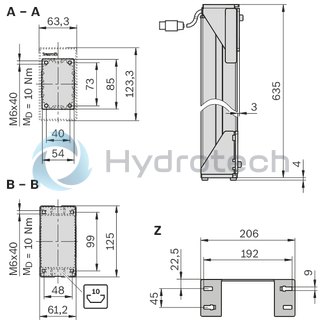

Lifting module (A)

Lifting module for stepless workstation height adjustment Connected via screw hole on face sides or using the integrated 10 mm slot Lifting force: max. 1000 N per lifting module; suitable for compressive forces only Lift: 410 mm Lifting velocity: 25 mm/s Cable length: 2000 mm

Control (B)

Control for synchronization of 1, 2, 3 or 4 lifting modules in parallel operation Operating time: 10 %

Hand switch (C)

For operating the controller, with push button for height adjustment and 3 memory buttons to store the different positions, cable length 3 m

Contact bridge (D)

For operating the controller without collision protection

Mains cable (E) (not shown)

For connection to power mains

Pressure wave control strip (F), pressure wave sensor (G)

For mechanical collision protection, you can connect the control unit (B) to a pressure wave control strip (F). Even if only slight pressure is applied to the pressure wave control strip, the pressure wave sensor (G) issues a signal to the control unit and the lifting modules move back a few millimeters in the opposite direction. The pressure wave control strip has a self-adhesive rear side and can be individually shortened.
