BOSCH REXROTH
3842538460


$185.33 USD
  • BOSCH REXROTH
  • Material:3842538460
  • Model:MATERIAL SHELF BASIC PP 610X410

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth MATERIAL SHELF BASIC PP 610X410 (3842538460) is a versatile and practical storage solution designed to enhance the ergonomics and efficiency at workstations. This material shelf is engineered to support the bin system, enabling easy access to containers, materials, measuring instruments, and other aids. It can be attached at any desired incline, height, or offset to meet specific user requirements. Constructed from light gray polypropylene (PP), the shelf is both durable and lightweight. For environments where static discharge is a concern, an ESD-conductive version in black is available; it is recommended to pair this with an ESD mat insert for optimal protection against electrostatic discharge. An aluminum option is also offered for situations that demand support for heavier loads. The MATERIAL SHELF BASIC PP features a frame profile that includes docking aids for the straightforward loading and removal of materials. Users have the flexibility to fix the shelf in place using the included brackets or opt for a swiveling attachment with swivel fastening for added versatility. The product allows for customized assembly from individual components to tailor it precisely to different workspace configurations. With its width of 610mm and depth of 410mm, this material shelf fits seamlessly into Rexroth workstations equipped with a 10mm profile slot. The product comes fully assembled for immediate use upon delivery and includes brackets necessary for fastening onto the workstation's profile slot. For those seeking additional functionality, recommended accessories include swivel fastening and lettering clips. The color of this material shelf is light gray, maintaining a clean and professional appearance in any setting.


Material shelf Basic, PP 610/410

Unpacked Weight: 5.976 kg

Material Shelf Basic

technical illustration-3842538460-Material shelf Basic, PP 610/410

Material Shelf Economic

technical illustration-3842538460-Material shelf Basic, PP 610/410
Material shelf for ergonomic accessibility of containers (kanban), materials, measuring instruments and other aids at Rexroth workstations
For implementing the 2-bin system
Can be attached at any desired incline, height or offset
Material shelf Economic with frame profile 22.5x30
Material shelf Basic with frame profile 22.5x45 with docking aids for easy loading and removal of materials
Plates
– PP: light gray
– SB: ESD-conductive; black; recommended accessory: ESD mat insert
– aluminum: for heavy loads (material shelf Basic): Plates
– PP: light gray
– SB: ESD-conductive; black; recommended accessory: ESD mat insert
– aluminum: for heavy loads (material shelf Basic)
Attachment fixed with brackets (included) or swiveling with swivel fastening
Customized assembly possible from individual components
Basicyes
Width of material shelf [BE]610
Depth of material shelves [TE]410
Productgroup ID2
MaterialPP
Weight5.976
Scope of deliveryIncludes brackets for fastening on the 10 mm slot
Delivery informationFully assembled
Recommended accessoriesSwivel fastening,Lettering Clip
ColorLight gray
Profile slot10

Material Shelf Basic

technical illustration-3842538460-Material shelf Basic, PP 610/410

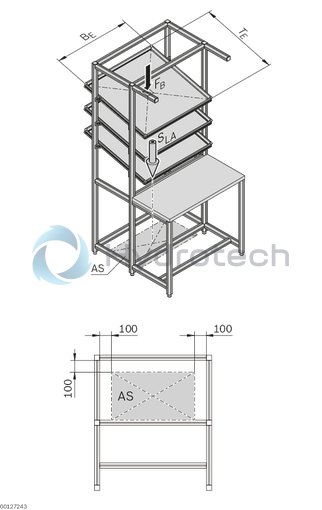

1) SLA Gravity vector
AS Permissible position for the line of action of gravity vector SLA

BE = B  -  45  -  80       (P=  40L)
BE = B  -  45  -  90       (P=  45L)
BE = B  -  45  -  120       (P=  60L)

technical illustration-3842538460-Material shelf Basic, PP 610/410

Material Shelf Economic

technical illustration-3842538460-Material shelf Basic, PP 610/410

Material shelf Basic, plate PP, SB, aluminum

technical illustration-3842538460-Material shelf Basic, PP 610/410

Swivel fastening, 180°

technical illustration-3842538460-Material shelf Basic, PP 610/410

Swivel fastening, 180°

Swivel fastening for shelves, etc. which need to be positioned at an angle of ± 90°.

CAD data

ESD mat insert

technical illustration-3842538460-Material shelf Basic, PP 610/410

ESD mat insert

ESD mat insert for protecting ESD-sensitive components To create a safe, conductive connection, e.g. to ESD material shelves, we recommend using adhesive copper tape Conduction resistance Rgp/Rpp = 104 ... 109 Ω (DIN EN 61340-5-1)

CAD data

Lettering clips

technical illustration-3842538460-Material shelf Basic, PP 610/410

Lettering clips

For labeling material shelves Suitable for labeling all profiles with 8 mm or 10 mm slot
