BOSCH REXROTH
3842536564
$15.11
- BOSCH REXROTH
- Material:3842536564
- Model:PLATE 45X90 M16
Quantity in stock: 16

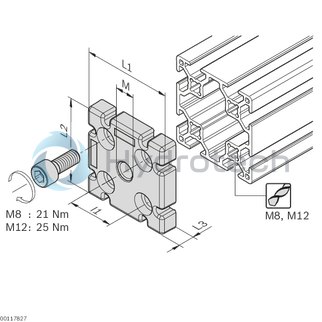

Plate 45x90
Unpacked Weight: 0.168 kg
| For fastening leveling feet in profiles without a central hole |
| For use as an end connector or T-connector |
| Profile finishing: tapping of thread in the central hole |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Dimension [L2] | 45 |
| Dimension [L1] | 90 |
| Productgroup ID | 2 |
| Dimension [L3] | 15 |
| Thread size | M16 |
| Force F | 20000 |
| ESD | yes |
| Dimension [l1] | 45 |
| Material | Diecast aluminum |
| Weight | 0.168 |
| Scope of delivery | Incl. fastening material |
| Material information | Plate: Diecast aluminum,Fastening material: Steel, galvanized |
| Fastening material | 2x cylinder head screw DIN7984-M12x20 |
| Profile slot | 8; 10 |
Plate 30x60, 40x80, 45x90
Plate 60x60 8N, 80x80L, 90x90L, 100x100L
|
