BOSCH REXROTH
GUSSET S 30X30
3842536490
$5.20
- BOSCH REXROTH
- Material:3842536490
- Model:GUSSET S 30X30
Quantity in stock: 12
Bracket S 30x30
Unpacked Weight: 0.02665 kg

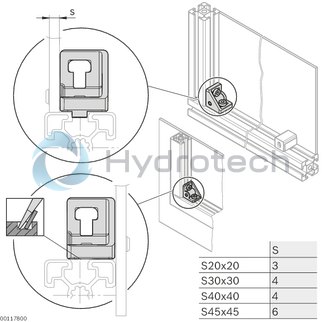

| Bracket with thread for virtually gap-free mounting of surface elements |
| For subsequent installation in closed frame constructions |
| The surface element can be mounted in different positions: flush with the profile edge or in front of the profile (by breaking off the centering lug) |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Packaging unit | 20 |
| ESD | yes |

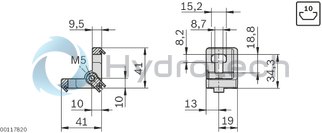

| Dimensions | 30x30 |
| Material | Diecast aluminum |
| Weight | 0.02665 |
| Scope of delivery | Set incl. fastening material (FS) |
| Recommended accessories | Variofix block S,Retainer ring |
| Required accessories | Screw for fastening the surface element |
| Material information | Bracket: Diecast aluminum,Fastening material: Steel, galvanized |
| Color | Silver |
| Profile slot | 8 |
Bracket S 20x20, 20x20 set
Bracket S 30x30 set 30x30
Bracket S 40/45, 40/45 set
Variofix Block
Variofix Block
For surface elements with a thickness of up to 13 mm For subsequent installation in closed frame constructions Asymmetrical form enables surface elements to be fastened in two different positions Clamping with snap-in clip or screw fitting with square nut M6 (included in scope of delivery) and screw Retainer ring for connecting the screw to the surface element (Machinery Directive 2006/42/EC)CAD data
Retainer ring
Retainer ring
Secures the fastening screw to the surface element For use with all Variofix blocks, but not for the S bracket Retrofitting possible For various thread sizesCAD data
|
