BOSCH REXROTH
3842535801
$58.02 USD
- BOSCH REXROTH
- Material:3842535801
- Model:HOLDING BRACKET PE-VF KIT
Quantity in stock: 2
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HOLDING BRACKET PE-VF KIT (3842535801) is a robust position monitoring kit designed for high precision and durability in industrial environments subject to dirt and debris. The kit's unique plier-shaped positioning unit (PE) is engineered to be highly resistant to contamination, making it an ideal solution for applications where cleanliness is difficult to maintain. It ensures workpiece pallets are accurately positioned with a precision of ± 0.15 mm in the direction of transport, and even greater accuracy transversely and vertically at ± 0.1 mm. The system boasts a maximum vertical press force of 400 N and a retention force in the direction of transport of 300 N when operating at a pressure of 4 bar, providing reliable holding power during processing cycles. The design allows for the workpiece pallets to be lifted approximately 1 mm above the conveyor level, effectively reducing wear on the conveyor chain by removing unnecessary load during operation. This kit is particularly versatile as it can be retrofitted without interfering with existing lateral guides, and its switch bracket can be installed in any position. To accommodate the positioning unit, workpiece pallets must have a minimum length—125 mm for both Size 65 and Size 90 configurations. For larger workpiece pallets exceeding 250 mm in length, two positioning units can be combined by removing the positioning mandrel from one unit and fitting eccentric centering bushings as specified by the customer. Additionally, position inquiries can be conducted using an assembly kit with two M12x1 sensors mounted on the housing or with part number 3 842 535 150 on the cylinder—though sensors are not included with this kit. With its capability to withstand harsh conditions while maintaining precise control over workpiece positioning, the Bosch HOLDING BRACKET PE-VF KIT (3842535801) is an essential component for enhancing efficiency and reliability in automated material handling systems.
The Bosch Rexroth HOLDING BRACKET PE-VF KIT (3842535801) is a robust position monitoring kit designed for high precision and durability in industrial environments subject to dirt and debris. The kit's unique plier-shaped positioning unit (PE) is engineered to be highly resistant to contamination, making it an ideal solution for applications where cleanliness is difficult to maintain. It ensures workpiece pallets are accurately positioned with a precision of ± 0.15 mm in the direction of transport, and even greater accuracy transversely and vertically at ± 0.1 mm. The system boasts a maximum vertical press force of 400 N and a retention force in the direction of transport of 300 N when operating at a pressure of 4 bar, providing reliable holding power during processing cycles. The design allows for the workpiece pallets to be lifted approximately 1 mm above the conveyor level, effectively reducing wear on the conveyor chain by removing unnecessary load during operation. This kit is particularly versatile as it can be retrofitted without interfering with existing lateral guides, and its switch bracket can be installed in any position. To accommodate the positioning unit, workpiece pallets must have a minimum length—125 mm for both Size 65 and Size 90 configurations. For larger workpiece pallets exceeding 250 mm in length, two positioning units can be combined by removing the positioning mandrel from one unit and fitting eccentric centering bushings as specified by the customer. Additionally, position inquiries can be conducted using an assembly kit with two M12x1 sensors mounted on the housing or with part number 3 842 535 150 on the cylinder—though sensors are not included with this kit. With its capability to withstand harsh conditions while maintaining precise control over workpiece positioning, the Bosch HOLDING BRACKET PE-VF KIT (3842535801) is an essential component for enhancing efficiency and reliability in automated material handling systems.
Position monitoring kit
Unpacked Weight: 0.107 kg
Position monitoring kit
The plier-shaped form of the positioning unit (PE) makes it highly resistant to dirt and shavings and thus suitable for dirty environments. The WT is lifted approx. 1 mm above the conveying level, thus eliminating the load on the conveyor chain during processing.
Positioning accuracy in the conveying direction: ± 0.15 mm (across: ± 0.1 mm, height: ± 0.1 mm) Maximum vertical press force (p = 4 bar): 400 N Maximum holding force (p = 4 bar) in the conveying direction: 300 N Suitable for retrofitting without disrupting the lateral guide The switch bracket can be installed in any position Minimum length of the workpiece pallet in order to incorporate the positioning unit:Size 65: L = 125 mm
Size 90: L = 125 mm

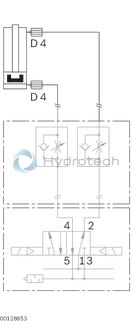

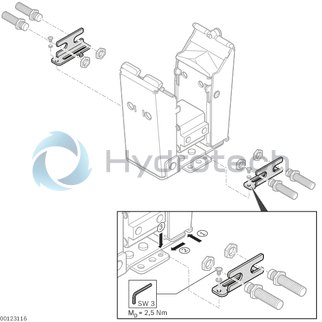

Two positioning units can be combined for workpiece pallets with L > 250 mm. For this, the position mandrel is removed from one of the PEs and the workpiece pallets are fitted with eccentric centering bushings by the customer. Position inquiry with assembly kit and 2 proximity switches M12x1 on the housing (proximity switches not included in the scope of delivery) or with 3 842 535 150 on the cylinder
| The plier-shaped form of the positioning unit (PE) makes it highly resistant to dirt and shavings and thus suitable for dirty environments. |
| The WT is lifted approx. 1 mm above the transport level, thus eliminating the load on the conveyor chain during processing |
| Positioning accuracy in the direction of transport: ± 0.15 mm (transverse: ± 0.1 mm, height: ± 0.1 mm) |
| Maximum vertical press force (p = 4 bar): 400 N |
| Maximum retention force (p = 4 bar) in the direction of transport: 300 N |
| Suitable for retrofitting without disrupting the lateral guide |
| The switch bracket can be installed in any position |
| Minimum length of the workpiece pallets in order to incorporate the positioning unit: Size 65: L = 125 mm Size 90: L = 125 mm: Minimum length of the workpiece pallets in order to incorporate the positioning unit: Size 65: L = 125 mm Size 90: L = 125 mm |
| 2 positioning units can be combined for workpiece pallets with L > 250 mm. For this, the positioning mandrel is removed from one of the PEs and the workpiece pallets are fitted with eccentric centering bushings by the customer |
| Position inquiry with assembly kit and 2 M12x1 sensors on the housing (sensor not in the scope of delivery) or with 3 842 535 150 on the cylinder |
| Maximum permissible torque in the plier area: 60 Nm |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Weight | 0.107 |
| Required accessories | M12×1 proximity switch |
| 1) | Not included in the scope of delivery |

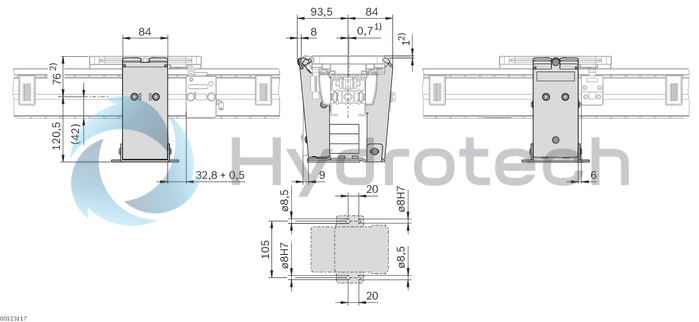

Positioning unit VF90
| 1) | Center offset of the workpiece pallet when it is positioned |
| 2) | Height offset of the workpiece pallet when it is positioned |

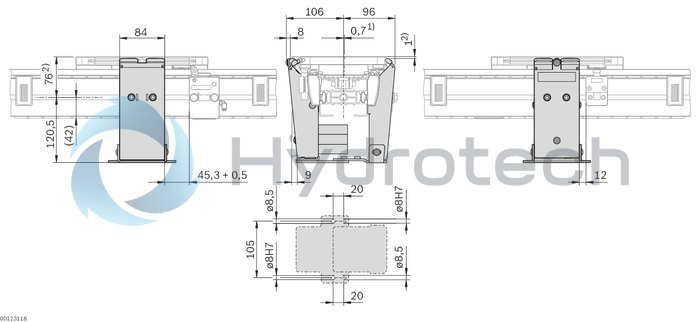

Positioning unit VF65
| 1) | Center offset of the workpiece pallet when it is positioned |
| 2) | Height offset of the workpiece pallet when it is positioned |
