BOSCH REXROTH
BOLT CONN
3842535619
$4.26
- BOSCH REXROTH
- Material:3842535619
- Model:BOLT CONNECTOR D17X15 10/10
Quantity in stock: 48
| For the right-angled connecting of two profiles |
| Designed for heavy loads and torsion |
| Can be installed in closed frames |
| Profile finishing: through-hole D11, D17 |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Packaging unit | 10 |
| ESD | yes |
| Profile slot P1/P2 | 10 / 10 |
| Material | Steel, galvanized |
| Weight | 0.0358 |
| Required accessories | Drilling jig (3842528574,3842530400) |
| Profile slot | 10 |
|
Größe |
|
|
|
|
30 |
2500 N |
60 Nm |
20 Nm |
|
40 |
4000 N |
180 Nm |
40 Nm |
|
45 |
4000 N |
180 Nm |
60 Nm |
|
50 |
4000 N |
200 Nm |
65 Nm |
|
60 |
4000 N |
200 Nm |
80 Nm |
|
80 |
5000 N |
800 Nm |
170 Nm |
|
90 |
5000 N |
800 Nm |
200 Nm |
|
100 |
5000 N |
1000 Nm |
480 Nm |

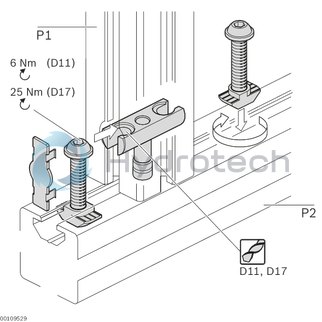

Bolt connector D11x11
Bolt connector D17x15
| Required accessories |
| Drilling jig |
