BOSCH REXROTH
3842535466
$6.40
- BOSCH REXROTH
- Material:3842535466
Quantity in stock: 7

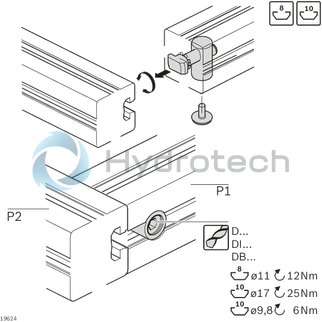

| Profile finishing: blind hole DI, DB11, DB17 or through-hole DI, D11, D17 |
| Tie rod head rotated at a 90° angle to the connector sleeve |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Bending moment 1 | 140 |
| Profile [P] | 10 / 10 |
| Productgroup ID | 2 |
| Packaging unit | 10 |
| ESD | yes |
| Diameter D | 17 |
| Material | Steel, galvanized |
| Weight | 0.0558 |
| Recommended accessories | Anti-torsion element,Radial compensation,Drilling jig,Cap |
| Head shape | rectangular |
| Mounting orientation | 90 ° |
| Profile slot | 10 |
|
Nut |
|
|
|
8/8 |
500 N |
40 Nm |
|
10/10 |
4000 N |
140 Nm |
|
10/10 |
800 N |
50 Nm |
Quick connector, 8/10 mm slot, 90°
Quick connector, 10/10 mm slot, 90°, connector sleeve D = 9.8
| Recommended accessories | ||
| Anti-torsion element | ||
| Radial compensation | ||
| Drilling jig | ||
| Cap |
Radial compensation
Radial compensation
To avoid gaps and sharp edges on T-connections between two profiles using a central bolt or quick connector (note spacing of hole from the face of the profile) The slot segments can be broken out in order to fix surface elements in the slot Important note: the load carrying capacity of the profile connection is reduced when using radial compensation!CAD data
Anti-torsion element
Anti-torsion element
Provides torsion resistance for profile connections with central bolts or quick connectors Subsequent installation in the connection possibleCAD data
