BOSCH REXROTH
3842535442
$33.18
- BOSCH REXROTH
- Material:3842535442
- Model:IDENTIFICAT.SYSTEM MDT23/28-L
Quantity in stock: 0
Mobile data tag 23/28-L
Unpacked Weight: 0.000475 kg
The mobile data tag MDT.../28‑L is located directly on the workpiece pallet and stores the identification allocated by the user during initialization. The compact MDT has a non-volatile EEPROM (battery back-up not required) with a memory capacity of 5 bytes (payload data).
MDT.../28‑L can be read from all sides (front, lift/right side, top and bottom) an unlimited number of times. In addition to various installation positions on the workpiece pallet, seamless integration into the workpiece pallet is also possible.
ID 15 data tags from manufacturing date FD986 can be initialized using the diagnostic package DPS/L for use with ID 200. The simultaneous operation of ID 15 and ID 200 is not possible.
| 1) | Mobile data tags MDT...L for 125 kHz |
| 2) | Mobile data tags MDT...H for 13.56 MHz |
| 3) | Flat antennas A...F for 125 kHz or 13.56 MHz |
| 4) | Round antennas A...R for 125 kHz or 13.56 MHz |
| 5) | Communication modules C-... for PROFIBUS or Ethernet |
| 6) | Control system |
| Compact MDT with non-volatile EPROM memory. |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Packaging unit | 5 |
| Transmission frequency | 125 |
| ESD | yes |
| Transmission distance - static | 15 |
| Ambient temperature [T] | -40 ... +85 °C |
| Transmission distance - dynamic | 12 |
| Number of write cycles | ≥ 100,000 |
| Number of read cycles | unlimited |
| Protection class | IP68 |
| Memory type | EEPROM |
| Material | PA 66 |
| Weight | 0.000475 |
| Mobile data tag 11/28-L | Mobile data tag 21/28-L | Mobile data tag 22/28-L | Mobile data tag 13/28-L | Mobile data tag 23/28-L | |
|
Frequency |
125 kHz | ||||
|
Memory capacity |
5 byte | ||||
|
Memory type |
EEPROM | ||||
|
Number of write cycles |
≥ 100,000 | ||||
|
Number of read cycles |
unlimited | ||||
|
Transmission distance – static |
15 mm | ||||
|
Transmission distance – dynamic |
12 mm | ||||
|
Ambient temperature during operation |
–40 ... +85 °C | ||||
|
Housing material |
PA 66 | ||||
|
Protection type |
IP68 | ||||
Mobile data tag 11/28-L

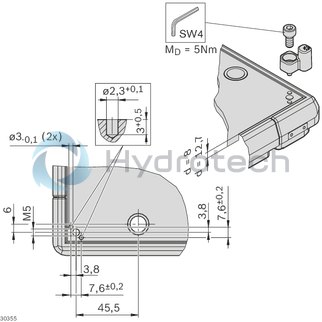

Drill pattern for 11/28-L on TS 1 workpiece pallet WT 1/K, WT 1/S
Drill pattern for 11/28-L on TS 1 workpiece pallet WT 1/P
Mobile data tag 21/28-L
Drill pattern for 21/28-L on TS 2plus workpiece pallet
Drill pattern for 21/28-L on TS 2plus workpiece pallet
Drill pattern for 21/28-L on TS 4plus workpiece pallet
Mobile data tag 22/28-L
Drill pattern for 22/28-L on TS 2plus workpiece pallet

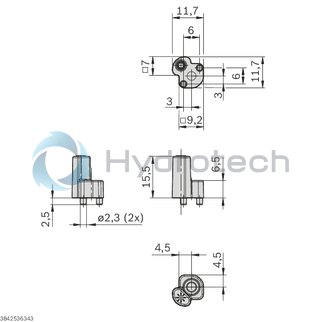

Mobile data tag 13/28-L

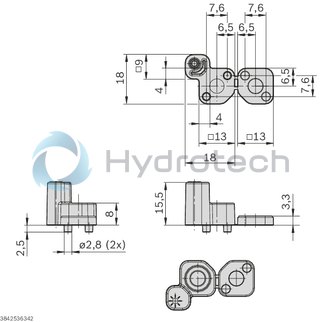

Mobile data tag 23/28-L
