3842530360
$26.38
- BOSCH REXROTH
- Material:3842530360
- Model:GUSSET 80X80 SET
Quantity in stock: 104
| Brackets with centering lugs for rapid, precise assembly with protection against turning |
| Centering lugs can be easily broken off for assembly on plates or at right angles to the slot |
| Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005) |
| Profile finishing: not required |
| Profile finishing: not required |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Bending moment 1 | 500 |
| Fastening material included | yes |
| Productgroup ID | 2 |
| Torsional moment | 400 |
| ESD | yes |
| Dimensions | 80x80 |
| Material | Diecast aluminum, vibratory ground |
| Bending moment 2 | 1000 |
| Weight | 0.44 |
| Scope of delivery | incl. fastening material (FS),Bracket (standard) |
| Recommended accessories | Cover cap for bracket 80x80, signal gray (3842548860) ,Cover cap for bracket 80x80, black (3842548861) |
| Material information | Bracket: Diecast aluminum, vibratory ground,Fastening material: Steel, galvanized |
| Fastening material | 8x T-bolt M8x25,8x flange nut M8 |
| Profile slot | 10 |
|
Groove |
ESD |
Material entry |
|
|
|
|
|
|
Fmax |
Mmax |
Mmax |
Mmax |
||||
|
N |
Nm |
Nm |
Nm |
||||
| Bracket | 10 |
|
Bracket: Diecast aluminum, vibratory ground Fastening material: steel; galvanized |
14000 | 500 | 1000 | 400 |
| 10 |
|
Bracket designLINE: Diecast aluminum; vibratory ground, painted (RAL 9006) Fastening material: steel; galvanized |
14000 | 500 | 1000 | 400 | |
| 10 |
|
Bracket: Diecast aluminum, vibratory ground | 14000 | 500 | 1000 | 400 | |
| Cover cap for bracket | PP | ||||||
|
|
PP |
|
Typ |
|
|
|
|
|
80 / 80 |
14000 N |
500 Nm |
1000 Nm |
400 Nm |

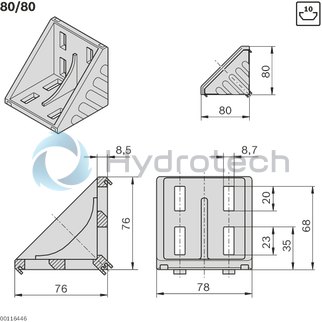

Bracket 80/80 with cover cap
