BOSCH REXROTH
3842529296
$1.74
- BOSCH REXROTH
- Material:3842529296
- Model:T-SLOT STONE 8 M6 SUSPENDED
Quantity in stock: 322
Swivel-in sliding block, with spring groove 8 steel, galvanized M6
Unpacked Weight: 0.00529 kg
| Profile finishing: not required |

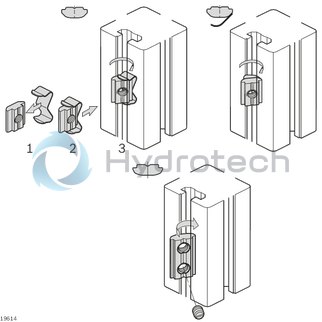

| The swivel-in sliding block with spring can be inserted directly at the assembly point and fixed in position thanks to attached springs |
| The swivel-in sliding block with spring can be inserted directly at the assembly point and fixed in position thanks to attached springs |
| The swivel-in sliding block with headless setscrews permits shake-proof fixing in all positions |
| Profile finishing: not required |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Groove retention [Fmax] | 2200 |
| Productgroup ID | 2 |
| Thread size | M6 |
| Packaging unit | 100 |
| Dimension h | 4.8 |
| Length [l] | 16 |
| Swivel-in | yes |
| ESD | yes |
| Dimension h1 | 1 |
| Material | Steel, galvanized |
| Weight | 0.00529 |
| Material information | Steel, galvanized,Spring: Spring steel, stainless |
| Profile slot | 8 |
Swivel-in sliding block profile
Sliding block, swivel-in
Swivel-in sliding block with spring
Sliding block, swivel-in, with headless setscrew
| Required accessories | ||
| Spring |
