BOSCH REXROTH
3842525854

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

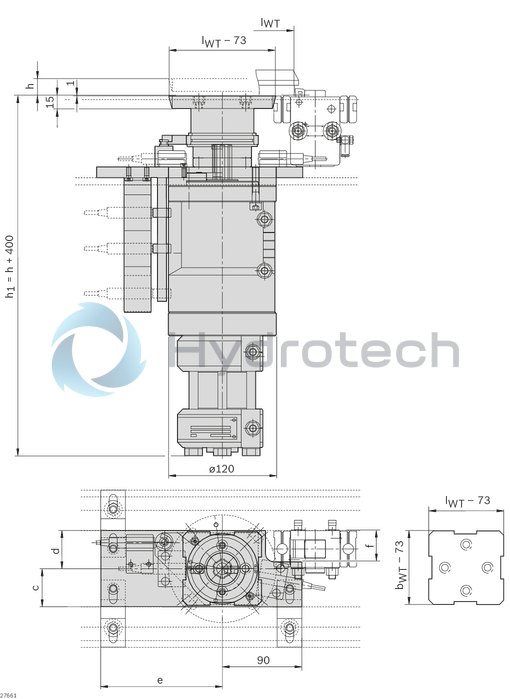

The Bosch Rexroth LIFT-ROTATE UNIT HD2 B160*LT320 180 90 (3842525854) is a sophisticated component designed for precise handling and orientation of workpiece pallets within automated conveyor systems. This lift and rotate unit provides the capability to turn workpiece pallets 90° or 180° on the Z axis, ensuring that items are always facing the correct direction for subsequent processes, which is particularly useful in systems that lack curved sections. Featuring two lift options, the unit can raise workpiece pallets either 40 mm or 90 mm above the transportation level. The 40 mm version is optimal for rotating pallets directly over the conveyor, while the 90 mm lift variant accommodates side-mounted components like identification and data storage modules without interference. This flexibility allows for customization based on specific application requirements. The HD2 B160*LT320 model is engineered to handle a maximum total mass moment of inertia of up to 0.65 kgm², demonstrating its capability to deal with significant loads while maintaining performance. The rotational direction of the HD2/90° can be individually actuated for each workpiece pallet, providing further adaptability in aligning products during their transit through manufacturing or packaging lines. This unit's design ensures that no additional force needs to be applied during operation, which speaks to its efficiency and ease of integration into existing systems. Overall, the Bosch LIFT-ROTATE UNIT HD2 B160*LT320 180 90 is a critical component for enhancing automation and ensuring consistent product orientation throughout industrial processes.
