BOSCH REXROTH
10.58
3842508087
$10.58 USD
- BOSCH REXROTH
- Material:3842508087
- Model:SEAL 45X90
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SEAL 45X90 Longitudinal end connector (3842508087) is a specialized component designed for the secure end-to-end connection of profiles that are used in systems carrying compressed air. This robust connector is engineered to withstand a maximum pressure (pmaxmax) of up to 8 bar, making it suitable for a variety of pneumatic applications where reliable air supply is crucial. The SEAL 45X90 features a design that allows for profile finishing with either through-hole D17 (suitable for profile sizes 45x90 and 45x180) or blind hole LF (for profile size 90x90L), providing versatility in its use across different profile configurations. The product's construction ensures an airtight seal when connecting profiles, preventing any potential air leaks that could compromise the efficiency and safety of the pneumatic system. Capable of facilitating the distribution of compressed air within industrial automation, assembly lines, and modular framing systems, the Bosch SEAL 45X90 Longitudinal end connector is an essential component for professionals looking to maintain the integrity and performance of their pneumatic infrastructure. Its ease of installation and compatibility with standard profile sizes make it a practical choice for maintaining continuous air supply in various applications.
The Bosch Rexroth SEAL 45X90 Longitudinal end connector (3842508087) is a specialized component designed for the secure end-to-end connection of profiles that are used in systems carrying compressed air. This robust connector is engineered to withstand a maximum pressure (pmaxmax) of up to 8 bar, making it suitable for a variety of pneumatic applications where reliable air supply is crucial. The SEAL 45X90 features a design that allows for profile finishing with either through-hole D17 (suitable for profile sizes 45x90 and 45x180) or blind hole LF (for profile size 90x90L), providing versatility in its use across different profile configurations. The product's construction ensures an airtight seal when connecting profiles, preventing any potential air leaks that could compromise the efficiency and safety of the pneumatic system. Capable of facilitating the distribution of compressed air within industrial automation, assembly lines, and modular framing systems, the Bosch SEAL 45X90 Longitudinal end connector is an essential component for professionals looking to maintain the integrity and performance of their pneumatic infrastructure. Its ease of installation and compatibility with standard profile sizes make it a practical choice for maintaining continuous air supply in various applications.
| For a maximum pressure (pmaxmax) of 8 bar: For a maximum pressure (pmaxmax) of 8 bar |
| Seal for end-to-end connection of profiles carrying compressed air |
| Profile finishing: through-hole D17 (45x90, 45x180); blind hole LF (90x90L) |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Packaging unit | 1 |
| Weight | 0.01 |
| Scope of delivery | Seal, 2 x spacer |
| Required accessories | Longitudinal end connector for profile connection |
| Material information | Seal: PUR,Spacer: PA |
| Profile slot | 10 |

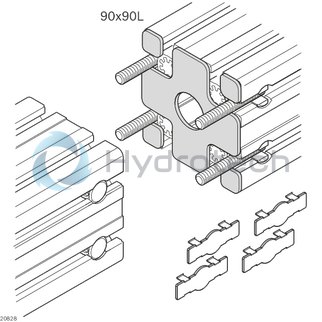

Longitudinal end connection 45x90
Longitudinal end connection 45x180
Longitudinal end connection 90x90
Longitudinal end connector
Longitudinal end connector
For the end-to-end connecting of two profiles Through hole D17 (two-sided longitudinal end connector)– Blind hole DB17 or through-hole D17 (end connector on one side)
