BOSCH REXROTH
DATA MEDIUM
3842410103
$32.93
- BOSCH REXROTH
- Material:3842410103
- Model:DATA MEDIUM MDT2/2K-H
Quantity in stock: 4
Mobile data tag 2/2K-H
Unpacked Weight: 0.03 kg
The mobile data tags are compatible with international standard ISO 15693 (13.56 MHz) and work without batteries and with FRAM memory. Several housing variants offer a wide range of installation positions on the workpiece pallet or directly on the products to be identified. The data tags can be read from several sides, including dynamically while passing.
MDTs with FRAM memory
Memory capacity: 2000 byte user memory additional 64 bit: unique serial number Write/read cycles: 1010
| 1) | Mobile data tags MDT...L for 125 kHz |
| 2) | Mobile data tags MDT...H for 13.56 MHz |
| 3) | Flat antennas A...F for 125 kHz or 13.56 MHz |
| 4) | Round antennas A...R for 125 kHz or 13.56 MHz |
| 5) | Communication modules C-... for PROFIBUS or Ethernet |
| 6) | Control system |
| MDT with FRAM memory |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Packaging unit | 5 |
| Data access | 8 byte block |
| Transmission frequency | 13.56 |
| Transmission distance - static | 35 |
| Ambient temperature [T] | -25 ... +85 °C |
| Transmission distance - dynamic | 30 |
| Number of write cycles | ≥ 10 billion |
| Number of read cycles | unlimited |
| Protection class | IP68 |
| Memory type | FRAM |
| Material | PA 66 |
| Weight | 0.03 |
| Conformity | ISO 15693 |
| Mobile data tag 1/2K-H | Mobile data tag 2/2K-H | Mobile data tag 3/2K-H | Mobile data tag 4/2K-H | Mobile data tag 6/2K-H | |
|
Frequency |
13.56 MHz | ||||
|
Standard conformity |
ISO 15693 | ||||
|
Memory capacity |
2000 byte | ||||
|
Data access |
8 byte block | ||||
|
Memory type |
FRAM | ||||
|
Number of write cycles |
≥ 10 billion | ||||
|
Number of read cycles |
unlimited | ||||
|
Transmission distance – static |
35 mm | ||||
|
Transmission distance – dynamic |
30 mm | ||||
|
Ambient temperature during operation |
–25 ... +85 °C | ||||
|
Housing material |
PA 66 | ||||
|
Protection type |
IP68 | ||||

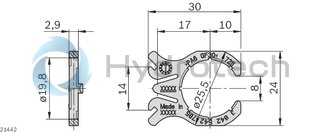

Mobile data tag MDT 1/2K-H
Mobile data tag MDT 1/2K-H

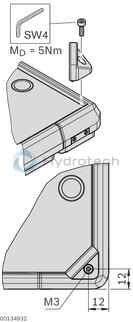

Drill pattern for MDT 1/2K-H on TS 1 workpiece pallet WT 1

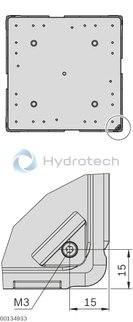

Drill pattern for MDT 1/2K-H on TS 2plus and TS 4plus workpiece pallets

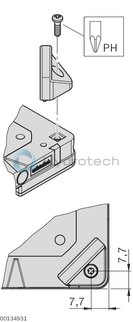

Drill pattern for MDT 1/2K-H on TS 4plus workpiece pallet

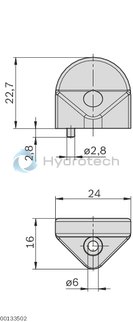

Mobile data tag MDT 2/2K-H
Mobile data tag MDT 2/2K-H

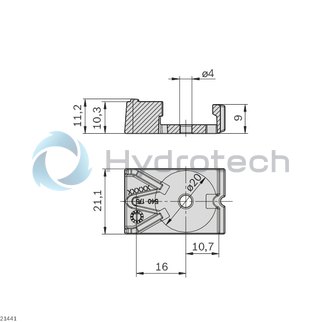

Mobile data tag MDT 3/2K-H
Mobile data tag MDT 3/2K-H

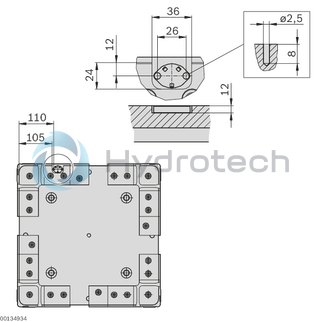

Drill pattern for MDT 3/2K-H on TS 4plus workpiece pallet

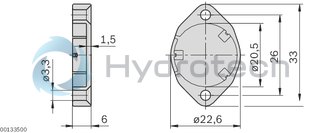

Mobile data tag MDT 4/2K-H
Mobile data tag MDT 4/2K-H
Mobile data tag MDT 6/2K-H
Mobile data tag MDT 6/2K-H
