BOSCH REXROTH
0811402080
$5,207.00 USD
- BOSCH REXROTH
- Material:0811402080
- Model:DREBE6X-1X/175MG24K31A1M
Quantity in stock: 0

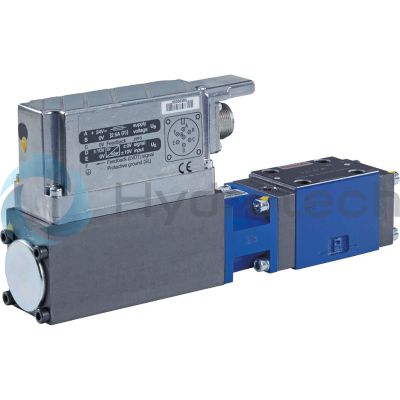

The Bosch Rexroth DREBE6X-1X/175MG24K31A1M (0811402080) is a state-of-the-art industrial hydraulic valve designed for precise pressure reduction in hydraulic systems. This proportional pressure reducing valve is pilot-operated, with the main stage being a 3-way version, ensuring efficient and reliable operation. It features a DBV pilot valve with an internal pilot oil supply that is flow-controlled via port P, providing consistent performance. The valve boasts an integrated electronics system and is actuated by a position-controlled proportional solenoid, allowing for seamless adjustments to the pressure at port A (actuator) based on the command value signal. The unique design allows for stepless setting of pressure, ensuring minimal hysteresis of less than 1% and remarkably short actuating times for responsive control. With its maximum pressure limitation feature, the DREBE6X-1X/175MG24K31A1M valve maintains safety even in the event of electronic failure. Designed for subplate mounting, it conforms to the ISO 4401 porting pattern standard, facilitating easy installation and maintenance. This Bosch hydraulic valve is engineered to provide exceptional control and reliability in various industrial applications where precise pressure reduction is crucial.
Size 6, P → A, electrical with integrated electronics, 24 VDC
Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.
Unpacked Weight: 3.68 kg
Proportional pressure reducing valves of type DREBE6X are pilot-operated; the main stage is a 3-way version. The pilot control valve (DBV pilot valve) has a flow-controlled internal pilot oil supply via P. It is actuated by a position-controlled proportional solenoid with integrated electronics. Dependent on the command value, the pressure in A (actuator) can be steplessly set and reduced using these valves.
| Spool valve |
| Pilot-operated |
| Size 6 |
| Volume flow, max. 40 l/min |
| Component series 1X |
| Operating pressure, max. 315 bar |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | P → A |
| Max. pressure | 315 |
| Electrical connection description | Connector according to DIN 43563-AM6 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 3 |
| Type of actuation | Electrical with integrated electronics |
| Conformity description | CE – according to EMC Directive 2014/30/EU |
| Size | 6 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 40 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
| Size_CETOP | D03 |
| Connection diagram | ISO 4401-03-02-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 2 |
| Weight | 3.68 |
| Seals | NBR |
| Connectivity | Analog, command value 0 … 10 V |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
| Conformity | CE |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
12 |
||
|
DREB |
E |
6 |
X |
– |
1X |
/ |
M |
G24 |
K31 |
M |
* |
|
01 |
Proportional pressure reducing valve in 3-way version with inductive position transducer, pilot-operated |
DREB |
|
02 |
With integrated electronics (OBE) |
E |
|
03 |
Size |
6 |
|
04 |
Porting pattern according to ISO 4401-03-02-0-05 |
X |
|
05 |
Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) |
1X |
|
Maximum pressure rating |
||
|
06 |
Up to 75 bar |
75 |
|
Up to 175 bar |
175 |
|
|
Up to 310 bar |
310 |
|
|
07 |
Without check valve |
M |
|
Supply voltage of the control electronics |
||
|
08 |
Direct voltage 24 V |
G24 |
|
Electrical connection |
||
|
09 |
Connector according to DIN 43563-AM6 |
K31 |
|
Electrical interface |
||
|
10 |
Command value 0 … 10 V |
A1 |
|
Command value 4 to 20 mA |
F1 |
|
|
11 |
NBR seals, suitable for mineral oil HL and HLP according to DIN 51524 |
M |
|
12 |
Further details in the plain text |
* |
For applications outside these parameters, please consult us!
general
|
Type |
DREBE6X | |
|
Size |
6 | |
|
Component series |
1X | |
|
Installation position |
any | |
|
Weight |
kg |
3.3 |
|
Ambient temperature range |
°C |
-20 … +50 |
hydraulic
|
Type |
DREBE6X | ||
|
Size |
6 | ||
|
Maximum operating pressure |
bar |
315 | |
|
Maximum operating pressure |
Port P |
bar |
315 |
|
Port T |
bar |
250 | |
|
Pilot flow |
l/min |
≈ 0.6 | |
|
Maximum flow |
l/min |
40 | |
|
Hydraulic fluid temperature range |
°C |
-20 … +70 | |
|
Viscosity range |
mm²/s |
10 … 800 | |
|
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) |
Class 18/16/13 according to ISO 4406 (c) | ||
|
Hysteresis 2) |
% |
≤ 1 | |
|
Manufacturing tolerance of the command value pressure characteristic curve 2) |
% |
< ± 5 | |
| 1) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
| 2) | Of the maximum set pressure |
electrical
|
Type |
DREBE6X | ||
|
Power supply |
Nominal voltage |
V |
24 |
|
Lower limit value |
V |
21 | |
|
Upper limit value |
V |
40 | |
|
Duty cycle |
% |
100 | |
|
Protection class according to DIN EN 60529 |
IP65 | ||
|
Conformity |
CE conformity according to EMC directive 2004/108/EC tested according to EN 61000-6-2 and EN 61000-6-3 | ||
