SUN HYDRAULICS
ZTJ

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

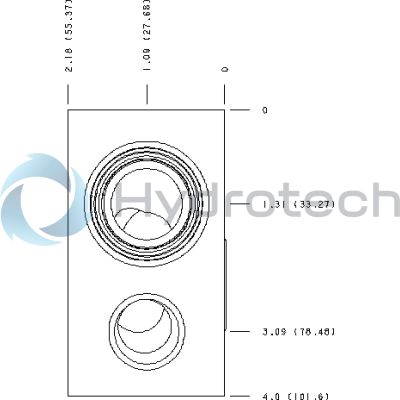

The Sun Hydraulics ZTJ (Material Number: ZTJ) is a line mount interface designed for direct mounting with cross pilot features. It is constructed to accommodate two mounting holes with a diameter of 0.53 inches (13.5 mm) and a depth that goes through the component. The counterbore diameter for these holes measures 0.78 inches (19.8 mm) with a depth of 0.44 inches (11.1 mm). The manifold body is crafted from 6061T651 aluminum, known for its excellent corrosion resistance, making it suitable for various hydraulic applications where durability and material integrity are crucial. This model features open cavities in the T-17A configuration and supports port sizes of 3/4 NPTF, ensuring compatibility with standard hydraulic systems. The ZTJ's design facilitates easy integration into existing systems while providing robust performance in controlling fluid flow within hydraulic circuits. It is important to note that while this manifold supports high flow rates, careful consideration must be given to the maximum system pressure, as aluminum manifolds like this one are not rated for pressures exceeding 3000 psi (210 bar). The choice of using non-anodized aluminum enhances its fatigue life by avoiding issues associated with anodizing processes, such as increased brittleness and reduced fatigue resistance under pressure. Overall, the Sun Hydraulics ZTJ model is engineered to deliver reliable performance in hydraulic applications requiring efficient flow management and system integration without compromising on durability or longevity under specified pressure conditions.
