SUN HYDRAULICS
ZLZ

$237.90 USD

Tags:

SUN HYDRAULICS
Material:ZLZ
Summary:Manifold

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

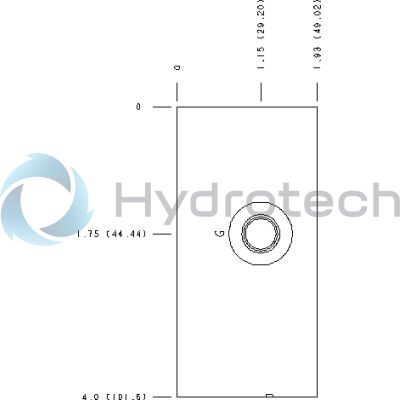

The Sun Hydraulics ZLZ (Material Number: ZLZ) is a subplate designed with an ISO 07 interface and features P to T side ports. This component is engineered with a robust 6061-T651 aluminum body, known for its excellent corrosion resistance and relative strength, making it suitable for various hydraulic applications. The subplate includes two mounting holes with a diameter of 0.41 inches (10.4 mm) and depth through, along with a counterbore diameter of 0.59 inches (15.0 mm) and depth of 0.56 inches (14.2 mm). It can accommodate up to two open cavities, specifically the T-3A cavity type, and supports port sizes of 3/4 BSPP. This subplate is optimal for use in hydraulic systems where efficient fluid transfer between components is crucial. Its design ensures reliable performance under pressures up to 3000 psi (210 bar), aligning with the limitations of aluminum construction for such applications. The Sun Hydraulics ZLZ subplate's precision-engineered features make it an ideal choice for systems requiring robust and corrosion-resistant components without the need for anodizing, which could affect fatigue life negatively due to the brittle surface it creates on aluminum. In summary, the Sun Hydraulics ZLZ offers a well-balanced combination of durability, efficiency, and ease of integration into hydraulic systems, providing users with a dependable solution for managing fluid connections in demanding environments.

Description

Body Type	SubplateSubplate
Interface	ISO 07ISO 07
Body Features	P to T, side portsP to T, side ports
Mounting Hole Diameter	.41 in.10,4 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole C'bore Diameter	.59 in.15,0 mm
Mounting Hole C'bore Depth	.56 in.14,2 mm
Mounting Hole Quantity	22
Open Cavities	11
Cavity	T-3A
Port Size	3/4" BSPP3/4" BSPP

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
