BOSCH REXROTH
R911306455
$5,011.46 USD
- BOSCH REXROTH
- Material:R911306455
- Model:CML20.1-NP-120-NA-NNNN-NW
Quantity in stock: 4
The extensive portfolio of scalable embedded control hardware flexibly extends centralized and decentralized automation topologies. The system can be integrated with the Sercos automation bus and other fieldbus and Ethernet-based protocols. Optional safety function/expansion modules enable easy expansion to include SafeLogic control
Unpacked Weight: 0.858 kg
| 3D CAD | Download 3D CAD |
| Memory | 16 GB |
| Power input | 4.6 |
| Width | 175.4 |
| Mass memory | CompactFlash 128 MB |
| Power supply voltage min | 19.2 |
| Productgroup ID | 4,6 |
| System availability | IL: 04VRS |
| Power supply voltage max | 30 |
| Height | 120 |
| Communication interface 2 | PROFIBUS |
| International protection code | IP20 |
| NVRAM | 64 kB |
| Number of channels | 8 |
| Communication interface 1 | Not defined |
| Rated voltage DC | 24 |
| Max. current consumption from Uls | 1.25 |
| Processor | STMicroelectr. ST40/166 MHz |
| Depth | 75.9 |
| Weight | 0.858 |
| Ambient temperature (during operation) | 5-55 |
| Ambient temperature (storage and transport) | -25-70 |
General data
|
Type |
CML20.1-NP-120 | |
|
Diagnostics |
Powerfail Watchdog Temperature monitoring |
|
|
Display |
LCD 1-line | |
|
Number of control keys |
4 | |
|
Ambient temperature (operation) |
°C |
+5 … +55 |
|
Permissible relative humidity (operation) |
5 % ... 95 %, EN 61131-2 | |
|
Protection type |
IP20 | |
|
Weight |
kg |
0.64 |
Processor
|
Type |
CML20.1-NP-120 | |
|
CPU |
(ST40, 200 MHz) | |
|
Real-time clock |
Integrated | |
Memory
|
Type |
CML20.1-NP-120 | |
|
Application/application |
MB |
16 |
|
Remanent memory |
kB |
64 |
|
Flash size |
MB |
128 |
Connection data
|
Type |
CML20.1-NP-120 | ||
|
Number of channels, used |
≤ 256 | ||
|
I/O extension |
Number of Inline modules |
≤ 63 | |
|
byte |
≤ 32 | ||
Interfaces
|
Type |
CML20.1-NP-120 | |
|
Type |
1 x Ethernet TCP/IP (standard) 1 x RS232 (standard) |
|
|
Fieldbus system |
1 x PROFIBUS master/slave (option) | |
Digital inputs
|
Type |
CML20.1-NP-120 | |
|
Number |
8 galvanically isolated inputs (interrupt capable) | |
Digital outputs
|
Type |
CML20.1-NP-120 | |
|
Number |
8 galvanically isolated outputs | |
Electrical data
|
Type |
CML20.1-NP-120 | ||
|
Supply voltage U |
VDC |
24 | |
|
Umin ... Umax |
19 V DC ... 30 V DC | ||
|
Residual ripple |
% |
± 5 | |
|
Logic supply UL |
V 1) |
7.5 | |
|
A |
≤ 1 | ||
|
Logic, segment supply ULS |
Tolerance |
-25 % … +30 % | |
|
A |
≤ 1.5 | ||
|
Segment supply voltage US |
Tolerance |
-15 % … +20 % | |
| Max. 8 A (total of UM + US) | |||
|
Main supply voltage UM |
V DC |
24 | |
|
Tolerance |
-15 % … +20 % | ||
| Max. 8 A (total of UM + US) | |||
|
Power consumption |
W |
5.5 | |
| 1) | Converted from external 24 V DC |
Mechanical tests
|
Type |
CML20.1-NP-120 | |
|
Vibration resistance |
g |
1 |
|
Shock |
g |
15 |
I/O system for the control cabinet
Inline (IP20)
I/O system for the control cabinet
Inline (IP20)
Compact, modular, and simple Space-saving I/O technology for DIN rail mounting Individually combinable modules Innovative assembly and installation conceptCAD Download
Fieldline (IP67)
I/O system for field installation
Fieldline (IP67)
I/O system for field installation
High protection type IP67 for harsh industrial environments Intelligent voltage concept for selective power-off Fast and perfect installation Highly reliable operation under extreme ambient conditions Compact designCAD Download
PLC system, embedded control hardware CML
ILC
PLC system, embedded control hardware CML
ILC
Cutting-edge control hardware with numerous extension options State-of-the-art PLC kernel, 2nd generation (based on CoDeSys V3) Ethernet-based real-time communication with the automation bus Sercos Synchronized Motion Control functionalityDocumentation ILC, 14VRS
Documentation ILC, 13VRS

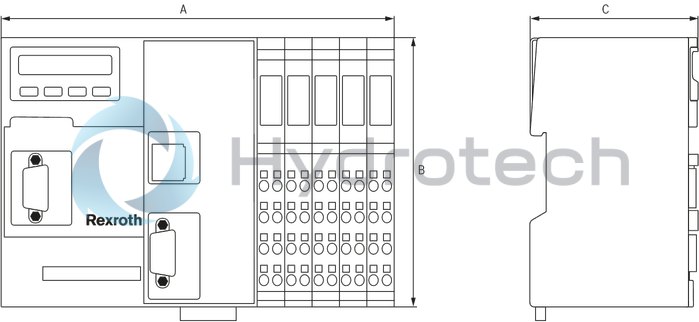

Dimensions
|
Type |
CML20.1-NP-120 | |
|
A |
mm |
175.4 |
|
B |
mm |
120 |
|
C |
mm |
75.9 |
Norms and Standards
|
Type |
CML20.1-NP-120 | |
|
Certifications |
CE/UL/CSA | |
