BOSCH REXROTH
R901506486
$8,147.00
- BOSCH REXROTH
- Material:R901506486

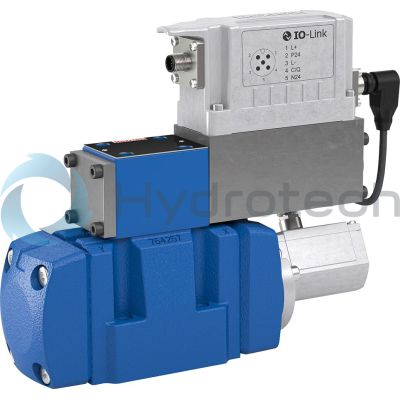

- Model:4WRLE10W6-100LJ-4X/MPT/24F1
Quantity in stock: 5
Size 10, symbol W6, electrical with integrated electronics, 24 V DC
Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback
Unpacked Weight: 9.120 kg
| Internal pilot oil supply, internal pilot oil return |
| Spool valve |
| Pilot-operated |
| Linear |
| Digital interface, IO-Link for I4.0 |
| Maximum flow 4700 l/min |
| Size 10 … 35 |
| Component series 4X |
| Maximum operating pressure 350 bar |
| Rated flow 60 … 1500 l/min |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Spool symbol | Symbol W6 |
| Max. pressure | 350 |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 4 |
| Type of actuation | Electrical with integrated electronics |
| Conformity description | CE – electromagnetic compatibility 2014/30/EU RoHS Directive 2011/65/EU REACH Regulation (EC) no. 1907/2006 |
| Size | 10 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 300 |
| Type of connection | Subplate mounting |
| Connection diagram NFPA | NFPA T3.5.1 R2-2002 D05 |
| Size_CETOP | D05 |
| Nominal flow | 100 |
| Connection diagram | ISO 4401-05-05-0-05 |
| Supply voltage | 24 VDC |
| Number of switching positions | 3 |
| Weight | 9.120 |
| Seals | NBR |
| Connectivity | Analog, command value 4 … 20 mA |
| Hydraulic fluid | HL,HLP,HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046) |
| Conformity | CE,RoHS |
| Conformity | CE |
