BOSCH REXROTH
R185462110

$4,481.95 USD

BOSCH REXROTH
Material:R185462110
Model:RWA-065-FXS-C2-S-2

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R.RUNNER BLOCK CS RWA-065-FXS-C2-S-2 (R185462110) is a high-precision roller runner block designed for linear motion applications requiring extreme accuracy and rigidity. This runner block is part of the R series, which is known for its robustness and versatility in various industrial applications. The RWA-065-FXS-C2-S-2 model features a steel CS body, with an FXS format indicating a flange width, extra-long length, and standard height. The preload class C signifies a medium preload, while the accuracy class SP denotes super precision capabilities. This runner block does not include a roller chain, is preserved but without initial lubrication, and lacks attachment elements on both the left and right front reference edges. It has a straight lube connection that comes loosely attached. The standard version of the runner block body has an overall length specified by the manufacturer. The Bosch Rexroth roller runner block boasts interchangeability with guide rails across all accuracy levels, ensuring limitless combination options. It is engineered to handle heavy-duty machine construction with extremely high load capacities. Its design includes additional mounting screw holes at the center for enhanced rigidity under liftoff and side loading conditions. The unit allows for attachments to be mounted from both above and below, simplifying maintenance tasks with lube nipples possible on all sides of the block. The innovative channel design ensures minimum lubrication quantities are required for operation. Moreover, it offers smooth and quiet running due to its optimally designed return and guideways for rollers. To ensure minimal variation in elastic deflection during use, it features optimized entry-zone geometry along with a high number of rollers. End caps made from either aluminum or plastic enhance the product's durability and longevity. The product adheres to DIN ISO standards regarding dynamic load capacity C determination based on a 100,000 m travel distance with an option to compare against typically stipulated 50,000 m distances by adjusting values accordingly. In summary, this Bosch Rexroth roller runner block is engineered for demanding applications where precision movement and high load capacity are critical factors. Its design facilitates easy maintenance while offering robust performance suited to heavy-duty machine construction environments.

Roller runner block, FXS, size 65, steel CS, accuracy super precision, average preload

The roller runner block is highly precise and characterized by the following product features:
Size 65
Format FXS: Width = flange, length = extra long, height = standard
Runner block body made of unalloyed steel CS
Preload class C2: Medium preload
Accuracy class SP: Super precision
Without roller chain
Preserved
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 345.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Unpacked Weight: 22 kg

Heavy-duty roller runner blocks are particularly suitable for heavy machine construction with very high carrying capacity- and rigidity requirements.

RSHP roller runner blocks are suitable for all typical applications as well as for special installation-, environmental- and operating conditions, so that additional special designs are not necessary.

Product description high-precision design

Selection of a linear guide acc. to DIN 637

Heavy-Duty Roller Runner Block for heavy machine construction with extremely high load capacity
Maximum rigidity in all load directions
Improved rigidity under lift-off and side loading conditions due to three additional mounting screw holes at the center of the Roller Runner Block
High torque load capacity
Limitless interchangeability and any number of combination options thanks to uniform Roller Guide Rails in different versions across all Roller Runner Block variants
Attachments on the Roller Runner Block can be mounted from above and below
Lube nipples possible on all sides for easy maintenance
Minimum lubrication quantities thanks to innovative channel design
Smooth, quiet running thanks to optimally designed return and guideways of the rollers
Minimal variation in elastic deflection thanks to optimized entry-zone geometry and high number of rollers
Aluminum or plastic end caps

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size diameter S5 (profiled rail systems)	18
Height of runner block	76
Footnote friction force FR	Guideline value for frictional drags of the complete, sealed and lubricated roller runner block.
Footnote permissible ambient temperature (min ... max)	100 °C admissible for short time. For operation at lower minus temperatures, please consult us.
Footnote dynamic load capacity C	Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23.
Size E2 (profiled rail systems)	200
Footnote friction coefficient μ	Without friction of seal
Permissible ambient temperature	-10 °C ... +80 °C
Size N5 (profiled rail systems)	9.3
Format	FKS - flange, short, standard height
Self-aligning for compensation of misalignments	Without self-alignment
Ball chain	Without roller chain
Friction coefficient μ	0,0004 ... 0,001
Pitch T guide rail	75
Height of runner block with guide rail	90
Static load rating C0	792800
Dynamic torsional moment load capacity Mt	13030
Size H2 with cover strip (profiled rail systems)	57.85
Size B2 (profiled rail systems)	339.5
Preload class	C2 – Average preload
Friction force	90
Size B1 (profiled rail systems)	275
Size H (profiled rail system)	90
Friction coefficient μ min.	0.0004
Accuracy class	SP - Super precise
Size A1 (profiled rail systems)	85
Size B3	345
Static torsional moment load capacity Mt0	28170
Runner block or guide rail	Runner block
Width of runner block	170
Size E8 (profiled rail systems)	35
Length of runner block	335
Linear guide type	Roller rail system
Dynamic load capacity C	366800
Static longitudinal moment load capacity ML0	34060
Size E9 (profiled rail systems)	9.3
Size N1 (profiled rail systems)	23
Size E1 (profiled rail systems)	142
Material (profiled rail systems)	Carbon steel
Size N6 with tolerance (profiled rail systems)	36,5 mm ±0,5
Max. acceleration amax	150
Size A (profiled rail systems)	170
Size N6 tolerance (profiled rail systems)	±0.5
Size A3 (profiled rail systems)	53.5
Preload force	29300
Size A2 (profiled rail systems)	63
Maximum permissible linear speed vmax	3
Lubrication	With preservation and without initial lubrication
Size N2 (profiled rail systems)	21.5
Size N6 (profiled rail systems)	36.5
Friction coefficient μ max.	0.001
Size B (profiled rail systems)	335
Size H2 with cover strip (profiled rail systems)	58.15
Seal	SS – Standard seal
Size K2 (profiled rail systems)	52.5
Size V1	15
Productgroup ID	17
Size K1 (profiled rail systems)	49.5
Dynamic longitudinal moment load capacity ML footnote	Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23.
Permissible ambient temperature (max)	+80
Footnote of size T (profiled rail systems)	T = Rail separation of the Roller Guide Rail
Dynamic longitudinal moment load capacity ML	15760
Size S2 (profiled rail systems)	M16
Size S9 thread diameter (profiled rail systems)	M4
Permissible ambient temperature (min)	-10
Note: Max. acceleration amax	Requirement: There must be preload, even during operation under load.
Size T1 min (profiled rail systems)	21
Dynamic torsional moment load capacity Mt footnote	Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23.
Weight	22
Nominal size	65
Size H1 (profiled rail systems)	76

Load capacities and load moments

Size		65
C	N	366800
C0	N	792800
Mt	Nm	13030
Mt0	Nm	28170
ML	Nm	15760
ML0	Nm	34060

	Determination of the dynamic load ratings and load moments is based on a 100,000 m stroke in accordance with DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt, and ML from the table by 1.23.

General technical data

Size		65
amax 1)	m/s²	150
vmax	m/s	3
m	kg	20.3
FR 2)	N	90
μ 3)		0.0004 ... 0.001
Material		CS
Operating conditions
Size		65
Permissible ambient temperature (min ... max) 4)		-10 °C ... +80 °C

1)	Prerequisite: There must be preload, even during operation under load.
2)	Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks.
3)	Without friction of seal
4)	Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us.

Legend

Symbol	Description	Unit
amax	Maximum acceleration travel	m/s2
C	Dynamic load capacity	N
C0	Static load capacity	N
Fpr	Preload force	N
FR	Friction force	N
m	Mass	kg
ML	Dynamic longitudinal moment load capacity	Nm
ML0	Static longitudinal moment load capacity	Nm
Mt	Dynamic torsional moment load capacity	Nm
Mt0	Static torsional moment laod capacity	Nm
vmax	Maximum permissible speed	m/s
μ	Friction coefficient

General technical data and calculations

Accuracy classes

Definition of preload class

The preload class is the pre-tensioning force Fpr based on the dynamic load rating C of the particular roller runner block.

Selection of the preload class

Code	Application area
C1	Special version on request
C4
C5
C2	For precise guide systems with both high external loading and high demands on overall rigidity;also recommended for single rail systems.
	Above average moment loads can be absorbed without significant elastic deflection.
	Further improved overall rigidity with only medium moment loads.
C3	For highly rigid guide systems such as precision machine tools, etc.
	Above average loads and moments can be absorbed with the least possible elastic deflection.
	Roller runner blocks with preload C3 available in accuracy classes P, SP (GP) and UP only.

Recommended combination based on preload and accuracy class

Recommendation for preload C2: Accuracy classes H and P

Recommendation for preload C3: Accuracy classes P and SP (GP)

Combination of hard chrome plated roller runner blocks with hard chrome plated roller guide rails

Upon combination of hard chrome plated roller runner blocks with preload C2 or C3 and hard chrome plated roller guide rails, the preload increases by approx. half a preload class.

Preload force Fpr (N)

Roller Runner Blocks			Size	25	35	45	55	65	100	125	55/85	65/100
	Type	Design type	Preload class	Preload force Fpr (N)
Roller runner block, steel1) Roller runner block, Resist CR2)	R1851 R1822 R1821 R1861	FNS SNS SNH	C1	830	1680	2930	3860	6520	‒	‒	‒	‒
			C2	2240	4510	7890	10400	17600	36900	60600	‒	‒
			C3	3640	7320	12800	16800	28500	59900	98400	‒	‒
			C4	4770	9610	16800	22100	37400	‒	‒	‒	‒
			C5	5610	11300	19700	26000	43900	‒	‒	‒	‒
	R1853 R1823 R1824 R1863	FLS SLS SLH	C1	1010	2060	3640	4790	8140	‒	‒	‒	‒
			C2	2720	5540	9790	12900	21900	50600	81600	‒	‒
			C3	4420	8990	15900	20900	35500	82200	132600	‒	‒
			C4	5800	11800	20800	27400	46600	‒	‒	‒	‒
			C5	6810	13900	24500	32200	54700	‒	‒	‒	‒
	R1854	FXS	C2	‒	‒	‒	‒	29300	‒	‒	‒	‒
	R1854	FXS	C3	‒	‒	‒	‒	47700	‒	‒	‒	‒
Wide roller runner block, steel1) Wide roller runner block, Resist CR2)	R1872	BLS	C2	‒	‒	‒	‒	‒	‒	‒	13200	21200
	R1872	BLS	C3	‒	‒	‒	‒	‒	‒	‒	21500	34500

1)	All steel parts made of carbon steel
2)	Steel roller runner block body with corrosion-resistant coating, matt silver finish, hard chrome-plated

Rigidity of roller rail system for preload C2

Heavy-duty roller runner block FXS R1854

Roller runner block mounted with:

4 screws, strength class 12.9

2 screws, strength class 8.8

Preload class

C2 = Preload (in accordance with table for pre-tensioning force Fpr in section "Technical information")

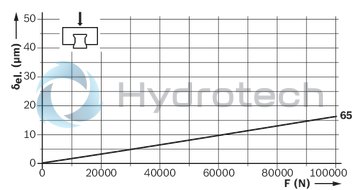

Down load

technical illustration-R185462110-Roller runner block, FXS, size 65, steel CS, accuracy super precision, average preload

1)	δel. = elastic deformation μm
2)	F = load N

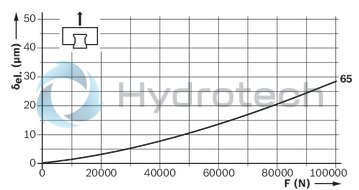

lift-off load

1)	δel. = elastic deformation μm
2)	F = load N

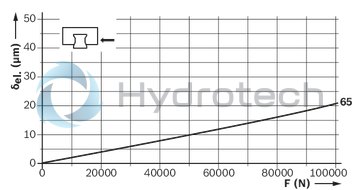

side load

1)	δel. = elastic deformation μm
2)	F = load N

Rigidity of roller rail system for preload C3

Heavy-duty roller runner block FXS R1854

Roller runner block mounted with:

4 screws, strength class 12.9

2 screws, strength class 8.8

Preload class

C3 = Preload (in accordance with table for pre-tensioning force Fpr in section "Technical information")

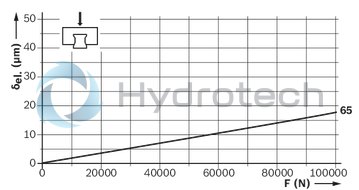

Down load

1)	δel. = elastic deformation μm
2)	F = load N

lift-off load

1)	δel. = elastic deformation μm
2)	F = load N

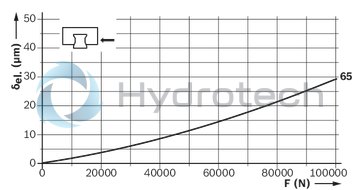

side load

1)	δel. = elastic deformation μm
2)	F = load N

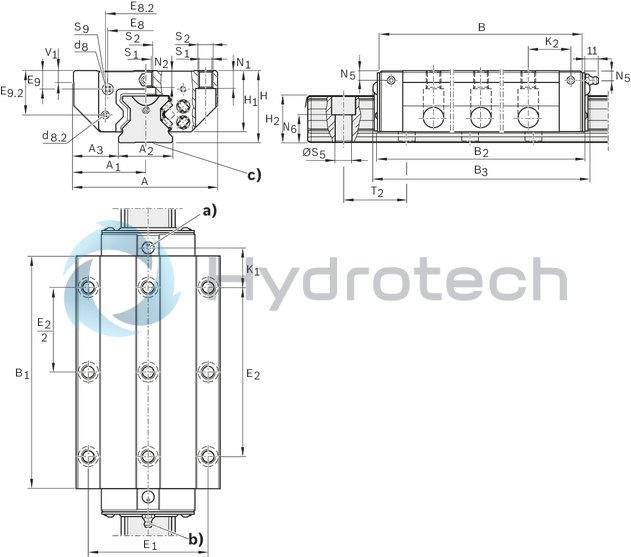

a)	For O-ring
	Ø 7 • 1.5 (mm)
b)	Lube nipple, thread M6 – 8 deep:
	Connection possible on all sides.
	Dimensions differ among different connection pieces.
	See "Accessories" for more information about lube ports.
c)	For roller guide rails of accuracy class H, this base area may be without a groove for manufacturing reasons.

Dimensions

Size		65
A	mm	170
A1	mm	85
A2	mm	63
A3	mm	53.5
B	mm	335
B1	mm	275
B2	mm	339.5
B3	mm	345
d8	mm	8
d8.2	mm	8
E1	mm	142
E2	mm	200
E8	mm	35
E8.2	mm	106
E9	mm	9.3
E9.2	mm	55
H	mm	90
H1	mm	76
Dimension H2 with cover strip	mm	58.15
Dimension H2 without cover strip	mm	57.85
K1	mm	49.5
K2	mm	52.5
N1	mm	23
N2	mm	21.5
N5	mm	9.3
N6		36.5 mm ±0.5
ØS1	mm	14,5
S2		M16
ØS5	mm	18
S9 1)		M4 ‒ 7 mm deep
T2 2)	mm	75
V1	mm	15

1)	Thread for adjoining parts
2)	Dimension T2 = hole spacing in the roller guide rail

General mounting instructions

Notes on lubrication

Scraper plates for Roller Rail Systems

R1820.10.0

Scraper plates for Roller Rail Systems

R1820.10.0

For mounting on Roller Runner Blocks for all roller guide rails with cover strip Scraper plates; material: Rust-free spring steel in as per DIN EN 10088; version: blank Spacer plate; material: Aluminum

CAD data

Service

Front seals for Roller Rail Systems

R1810 .1. 00

Front seals for Roller Rail Systems

R1810 .1. 00

Already integrated in RSHP (replacement only for first generation roller runner blocks) Material: Corrosion-resistant spring steel as per DIN EN 10088 with plastic seal Design: bright

CAD data

Instructions

Service

End cap set with front seals for Roller Rail Systems

R1810 .9. ..

End cap set with front seals for Roller Rail Systems

R1810 .9. ..

For replacement when servicing roller runner blocks

Instructions

Service

Viton seal for Roller Guide Rails

R1810.00..

Viton seal for Roller Guide Rails

R1810.00..

For mounting on Roller Runner Blocks for all Roller Guide Rails Material: Stainless steel plus seal made of Viton Easy mounting and removal even when Guide Rail is screwed down (note the mounting instructions). Two sections

CAD data

Service

NBR seal for Roller Rail Systems

R181060090

NBR seal for Roller Rail Systems

R181060090

For mounting on Roller Runner Blocks for all Roller Guide Rails Material: Stainless steel plus FKM seal Easy mounting and removal even when Guide Rail is screwed down (note the mounting instructions). Two sections

Service

FKM seal and scraper plate set for Roller Rail System

R181060570

FKM seal and scraper plate set for Roller Rail System

R181060570

For mounting on Roller Runner Blocks for Roller Guide Rails with cover strip

Service

Front lube units

R1810 .25 00

Front lube units

R1810 .25 00

Front lube units suitable for RSHP Roller Runner Blocks and generation 1 Roller Runner Blocks For travel up to 5,000 km without relubrication Roller runner block only needs initial lubrication with grease Front lube units on both sides of the roller runner block Low lubricant loss

CAD data

Mounting of Front Lubrication Unit (Video)

Service
