R161942050
$117.00
- BOSCH REXROTH
- Material:R161942050
- Model:FRONT SEAL 45
Quantity in stock: 18
Seal kit - with cover strip - 45
Seal kit for ball rail systems
With cover strip
Size 45
Unpacked Weight: 0.193 kg
Structural design Seal kit
| 1) | Scraper plate |
| 2) | Reinforcing plate |
| 3) | Two-piece front seal |
| The seal kit is recommended when combining the cover plate wiper with a two-piece front seal. |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Productgroup ID | 17 |
| Size B3 | 11.1 |
| Size B4 | 8 |
| Size H3 | 49.5 |
| Size diameter S12 (profiled rail systems) | 7 |
| Size diameter S9 (profiled rail systems) | 5 |
| Type | with cover strip |
| Size E8 (profiled rail systems) | 69.8 |
| Linear guide type | Accessories for profiled rail systems |
| Size E9 (profiled rail systems) | 20.5 |
| Size A4 (profiled rail system) | 85 |
| Accessories for profiled rail systems | Seals |
| Weight | 0.193 |
| Nominal size | 45 |

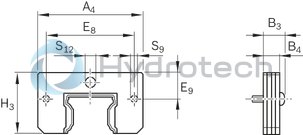

Dimensions
|
Size |
15 | 20 1) | 25 1) | 30 | 35 | 45 | 55 | ||||
|
Part number |
R161912050 | R161982050 | R161922050 | R161972050 | R161932040 | R161932050 | R161942040 | R161942050 | R161952040 | R161952050 | |
|
A4 |
mm |
32 | 42 | 47 | 59 | 69 | 85 | 98 | |||
|
B3 |
mm |
6.3 | 6.9 | 8.2 | 11.1 | 11.7 | |||||
|
B4 |
mm |
4.2 | 4.5 | 5.8 | 8 | ||||||
|
E8 |
mm |
24.55 | 32.4 | 38.3 | 48.4 | 58 | 69.8 | 80 | |||
|
E9 |
mm |
6.3 | 6.8 | 11 | 14.1 | 17 | 20.5 | 21.5 | |||
|
H3 |
mm |
19 | 24.3 | 29 | 34.5 | 39.5 | 49.5 | 56 | |||
|
Ø S9 |
mm |
3,5 | 4 | 5 | 6 | ||||||
|
Ø S12 |
mm |
4,3 | 5,1 | 7 | |||||||
| 1) | Not for ball runner blocks F.N (flanged ... low) and S.N (slimline ... low) |
