BOSCH REXROTH
R037551041
$25.89
- BOSCH REXROTH
- Material:R037551041
- Model:CLAMPING PIECE C145
Quantity in stock: 3
Unpacked Weight: 0.0551 kg

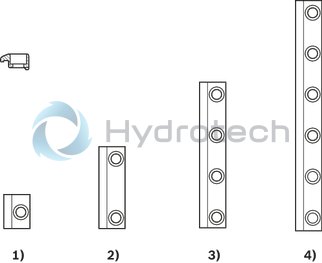

Recommended number of clamping fixtures:
Type 1: 6/31) Pieces per meter and side Type 2: 4 pieces per meter and side Type 3: 3 pieces per meter and side Type 4: 3 pieces per meter and side
1) For size 070
| 1) | Type 1 |
| 2) | Type 2 |
| 3) | Type 3 |
| 4) | Type 4 |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Number of bores N | 6 |
| Tightening torque of fixing screws footnote | at friction factor 0.125, in accordance with strength class 8.8 |
| Size A | 142 |
| Productgroup ID | 17 |
| Size F | 19.3 |
| Size H | 7 |
| Mechanical accessories for linear axes | Clamping fixtures |
| Size E | 5.3 |
| Outer diameter D | 11.5 |
| Size D | 11.5 |
| Type | 4 |
| Size G | 14 |
| Tightening torque of fastening screws | 9.5 |
| Size B | 8.5 |
| Weight | 0.0551 |
| Size C | 25 |
| Nominal size | CKK-/CKR-110/145 |
Technische Daten
|
Size |
Part number |
MA 1) |
|
Nm |
||
| CKK-/CKR-070; MKK-/MKR-040; PSK-060; VKK-050 | R141901001 | 5.5 |
| CKK-/CKR-070; MKK-/MKR-040; VKK-050 | R141901043 | |
| CKK-/CKR-090 | R037531000 | 2.7 |
| R037531002 | ||
| R037531003 | ||
| R037531032 | ||
| R037531033 | ||
| R037531038 | ||
| R037531041 | ||
| CKK-/CKR-110/145; VKK-070; FMS/FMB | R037541002 | 5.5 |
| R037541026 | ||
| CKK-/CKR-110/145; FMS/FMB | R037541041 | |
| CKK-/CKR-110/145; VKK-070/100; FMS/FMB | R037551000 | 9.5 |
| R037551002 | ||
| CKK-/CKR-110/145; OBB-055; VKK-070/100; FMS/FMB | R037551033 | |
| CKK-/CKR-110/145; VKK-070/100; FMS/FMB | R037551034 | |
| R037551023 | ||
| CKK-/CKR-110/145; FMS/FMB | R037551041 | |
| CKK-/CKR-200; MKK-/MKR-/MLR-110; OBB-120 | R117529026 | 23 |
| CKK-/CKR-200 | R117529096 | |
| R117529097 |
| 1) | for friction factor 0.125, as per strength class 8.8 |

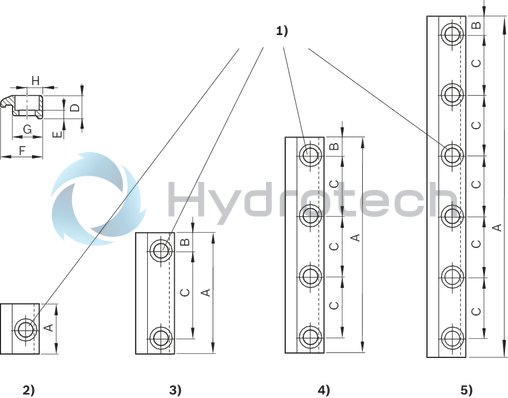

Legend
|
Symbol |
Description |
Unit |
|
MA |
Tightening torques of fastening screws |
Nm |
| 1) | Countersink for thread M ISO 4762, number N |
| 2) | Type 1 |
| 3) | Type 2 |
| 4) | Type 3 |
| 5) | Type 4 |
Dimensions
|
Size |
Part number |
A |
B |
C |
D |
E |
F |
Thread 1) |
G |
H |
Number of holes |
|
N |
|||||||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||||
| CKK-/CKR-070; MKK-/MKR-040; PSK-060; VKK-050 | R141901001 | 22 | - | - | 10 | 4.8 | 15 | M5 | - | 6.5 | 1 |
| CKK-/CKR-070; MKK-/MKR-040; VKK-050 | R141901043 | 57 | 8.5 | 40 | 15.1 | 2 | |||||
| CKK-/CKR-090 | R037531000 | 25 | - | - | 9 | 4.6 | 14.5 | M4 | 10.5 | 5 | 1 |
| R037531002 | 87 | 6 | 25 | 4 | |||||||
| R037531003 | 107 | 8.5 | 30 | ||||||||
| R037531032 | 72 | 11 | 50 | 2 | |||||||
| R037531033 | 62 | 40 | |||||||||
| R037531038 | 87 | 13.5 | 20 | 4 | |||||||
| R037531041 | 107 | 8.5 | 18 | 6 | |||||||
| CKK-/CKR-110/145; VKK-070; FMS/FMB | R037541002 | 30 | 11.5 | 4.8 | 19.3 | M5 | 14 | 7 | 4 | ||
| R037541026 | 77 | 20 | |||||||||
| CKK-/CKR-110/145; FMS/FMB | R037541041 | 107 | 18 | 6 | |||||||
| CKK-/CKR-110/145; VKK-070/100; FMS/FMB | R037551000 | 25 | - | - | 5.3 | M6 | 1 | ||||
| R037551002 | 142 | 11 | 40 | 4 | |||||||
| CKK-/CKR-110/145; OBB-055; VKK-070/100; FMS/FMB | R037551033 | 72 | 50 | - | 2 | ||||||
| CKK-/CKR-110/145; VKK-070/100; FMS/FMB | R037551034 | 62 | 40 | 14 | |||||||
| R037551023 | 47 | 8.5 | 30 | ||||||||
| CKK-/CKR-110/145; FMS/FMB | R037551041 | 142 | 25 | 6 | |||||||
| CKK-/CKR-200; MKK-/MKR-/MLR-110; OBB-120 | R117529026 | 108 | 19 | 70 | 27.5 | 16.3 | 29 | M8 | - | 9 | 2 |
| CKK-/CKR-200 | R117529096 | 88 | 50 | 14.8 | 19 | ||||||
| R117529097 | 78 | 40 |
| 1) | Countersink ISO 4762 |
CKR Compact Modules: When installing the clamping fixtures, observe a minimum distance of 10 mm to the end face of the frame.
